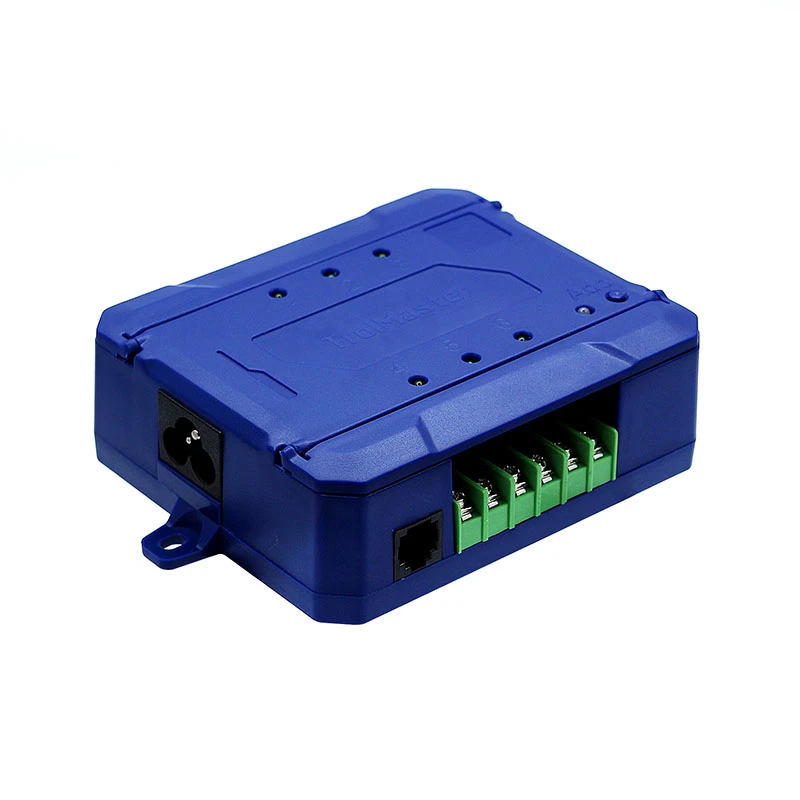

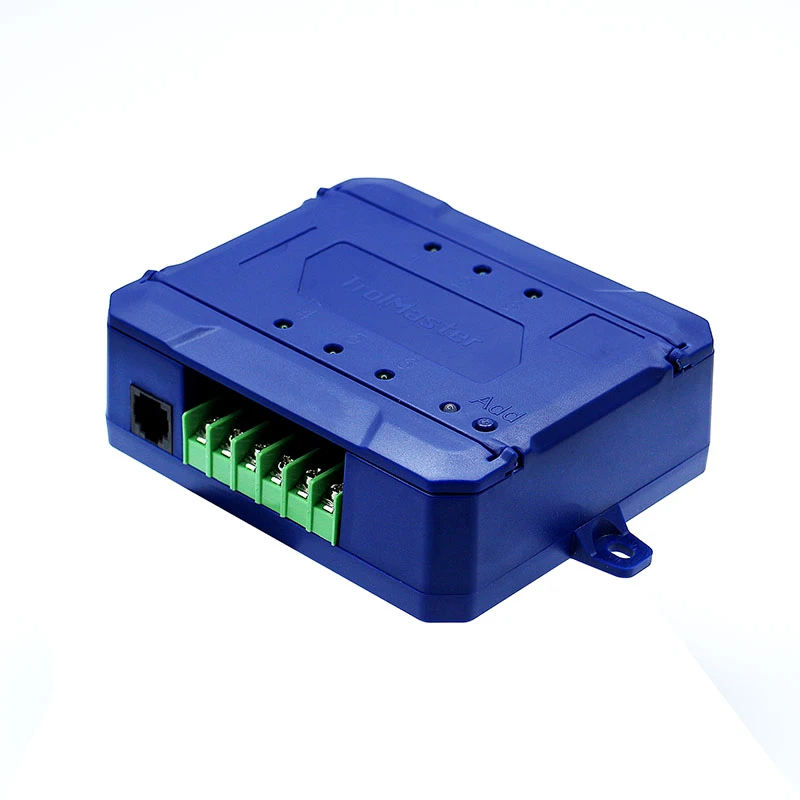

24V Control Board (OA6-24) for Aqua-X System


Price:
$ 83.95

Description

The OA6-24 control board is designed to control multiple 24vac solenoid valves.

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

Features:

  • LED Power Indicator
  • Addressing Button
  • 6 Individually-Controlled 24V Outputs
  • Individual LED Indicator for Each Output
  • Double RJ12 Cable Sockets for Daisy Chain Connectivity

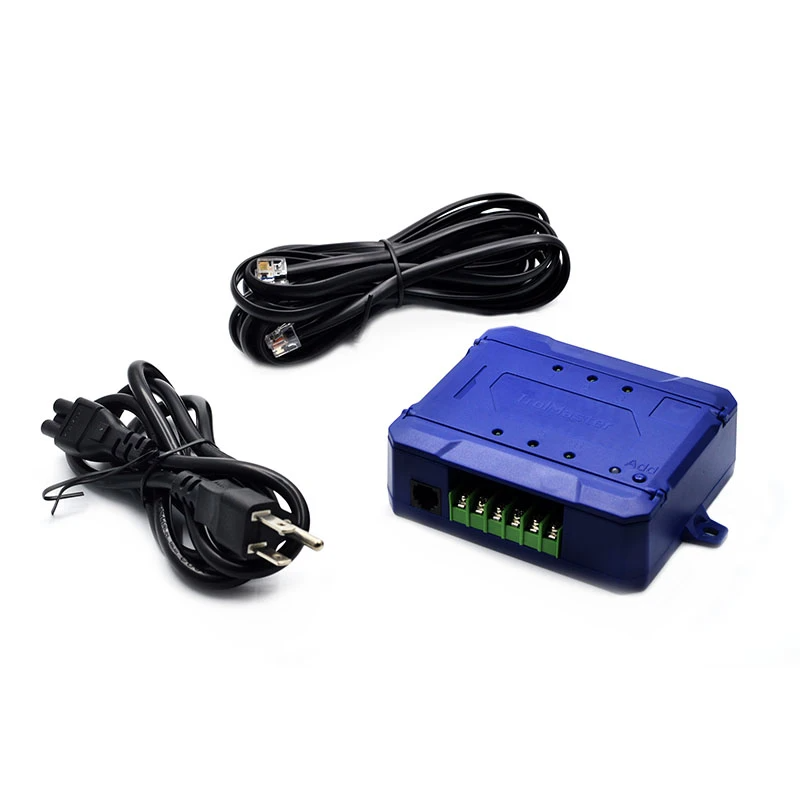

Package Contents:

  • 1 x 24V Control Board
  • 1 x 16ft RJ12 Cable

Specifications:

  • Input Voltage:                       110-240 VAC
  • Max Input Current:                0.2A
  • Max Output Voltage/Current:    24VAC/0.2A per output
  • Working Environments:    Temperature 32°-122°F, Humidity≤90%
  • Packaging Dimensions:    275mm(L) x 164mm(W) x 40mm(H)
