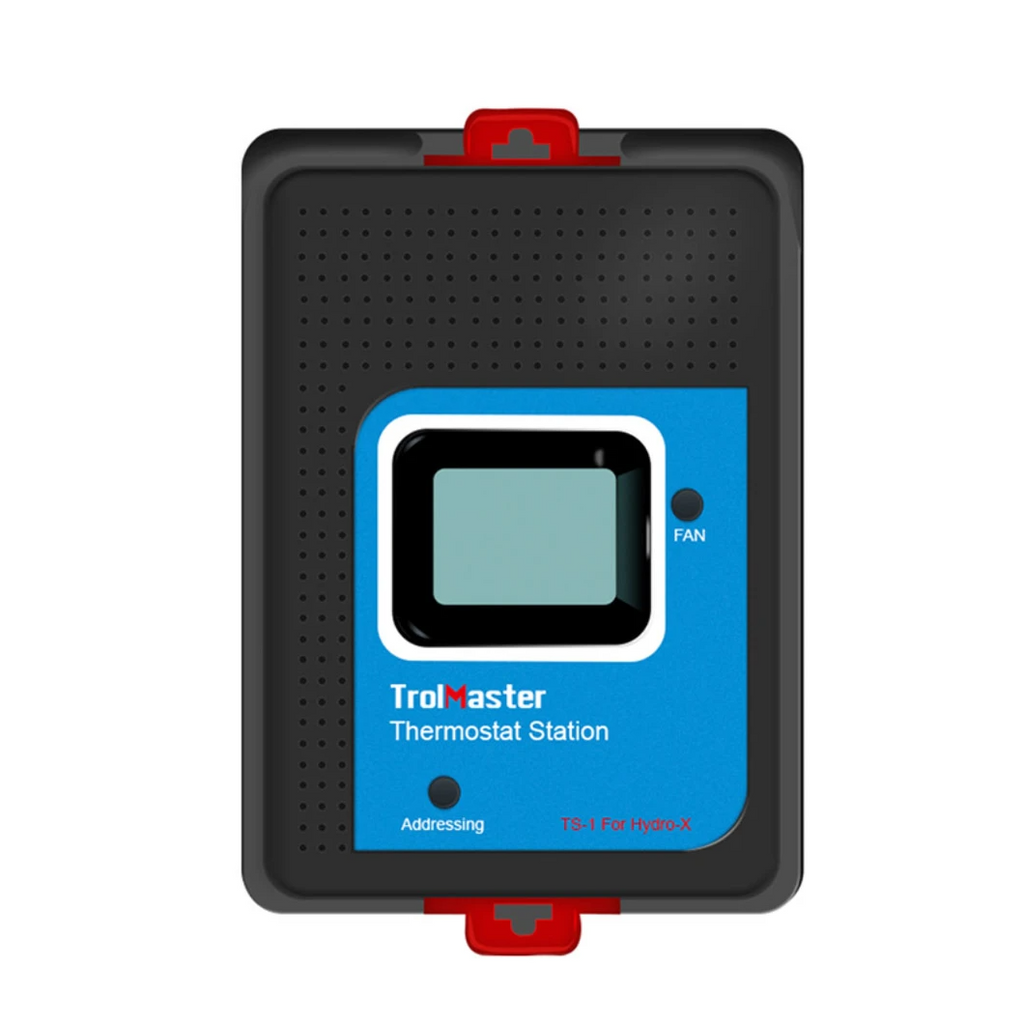

Thermostat Station for Hydro-X System (TS-1)


Price:
$ 94.99

Description

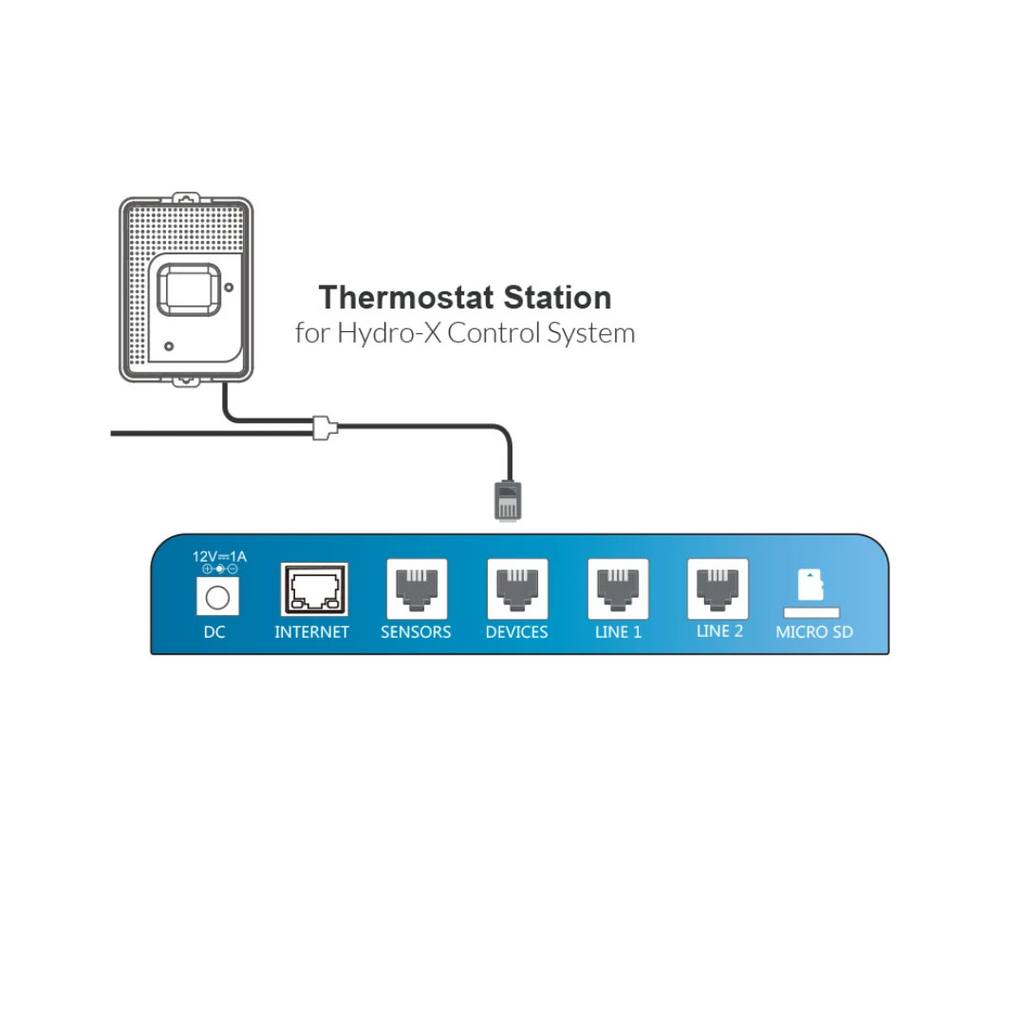

The TS-1 thermostat stations is designed to replace a thermostat connected to a conventional cool only HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules so multiple HVAC systems can be controlled by a single Hydro-X system.

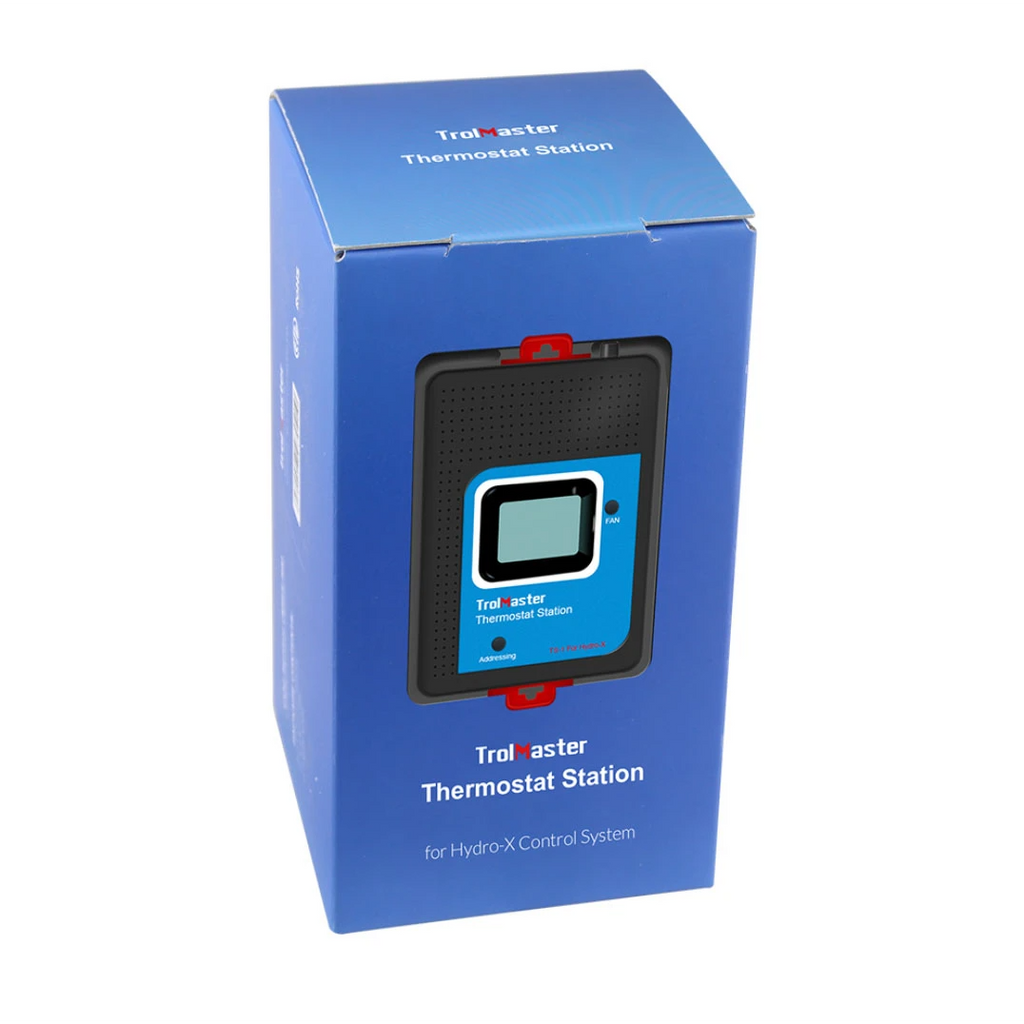

Package Contents:

 1 x Thermostat Station (TS-1)

 1 x 16ft RJ12 Cable

 1 x 4ft RJ12 Cable

 1 x RJ12 T-Splitter



Thermostat Station (TS-1)_Instructions



Features:

  • No Extra Power Needed
  • LCD Display, Easy Operation
  • Micro-SD for Firmware Update
  • Seamless Connectivity with Hydro-X
  • Replace Thermostat to Control Commercial AC Units


Specifications:

Working Environments:                         Temperature 32-122°F, Humidity≤90%

Package Dimensions:                              85mm(L) x 160mm(W) x 85mm(H)

G.W. per pack:                                                            0.40kgs
